The ADTO ringlock scaffolding system.

Time:2015/10/08

In the ringlock system, there are two major kinds of the ringlock supporting system and the ringlock scaffolding system. And in the ringlock system, the main elements are listed as follows:

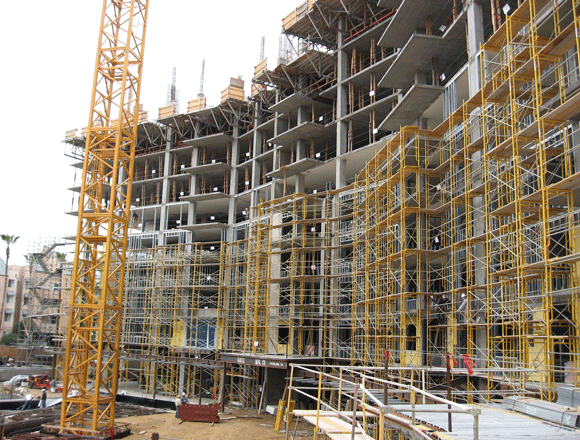

scaffolding tube

  1. Standing tubes: including the square steel tubing, will be designed according to the real length and be installed a disk every 0.5 meter.
  2. Flat tubes: including the square steel tubing, will be designed according to the real length and be welded flat tube heads on the two ends.
  3. Diagonal tubes: including the square steel tubings, will be designed according to the real length and be welded diagonal tube heads on the two ends.
  4. Starting tubes: welded with disks, and connected with adjustable base and standing tubes.
  5. Tripod frame: for the support of the extended platform and scaffolding system.
  6. Disks: 8mm or 10mm thick, and made of Q235B steel plates.
  7. Staircase and handrail: for the connection of the upper and downside level for the workers to work and walk. The handrails are installed for the sake of working safety.

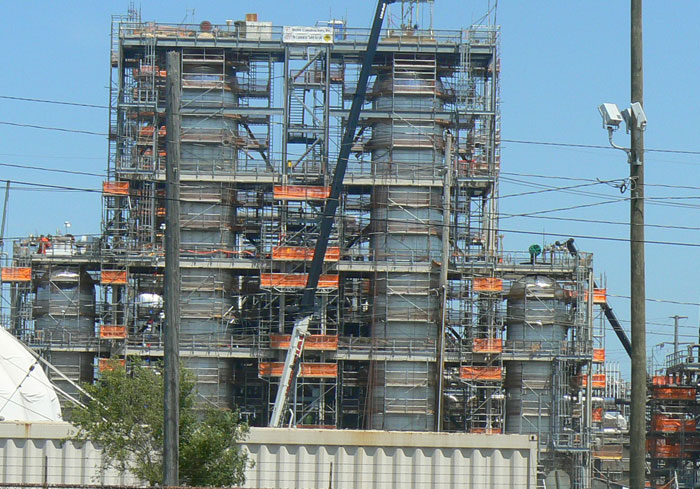

scaffolding tube
