How to set horizontal reinforcing tubes in the frame scaffolding?

Time:2015/09/22

Chinese frame type aluminum scaffolding manufacturer will you many suggestions on how to choose the right ways to erect the scaffolding elements and shapes. But here ADTO will give you the most professional advice on what is the most appropriate way to scaffold.

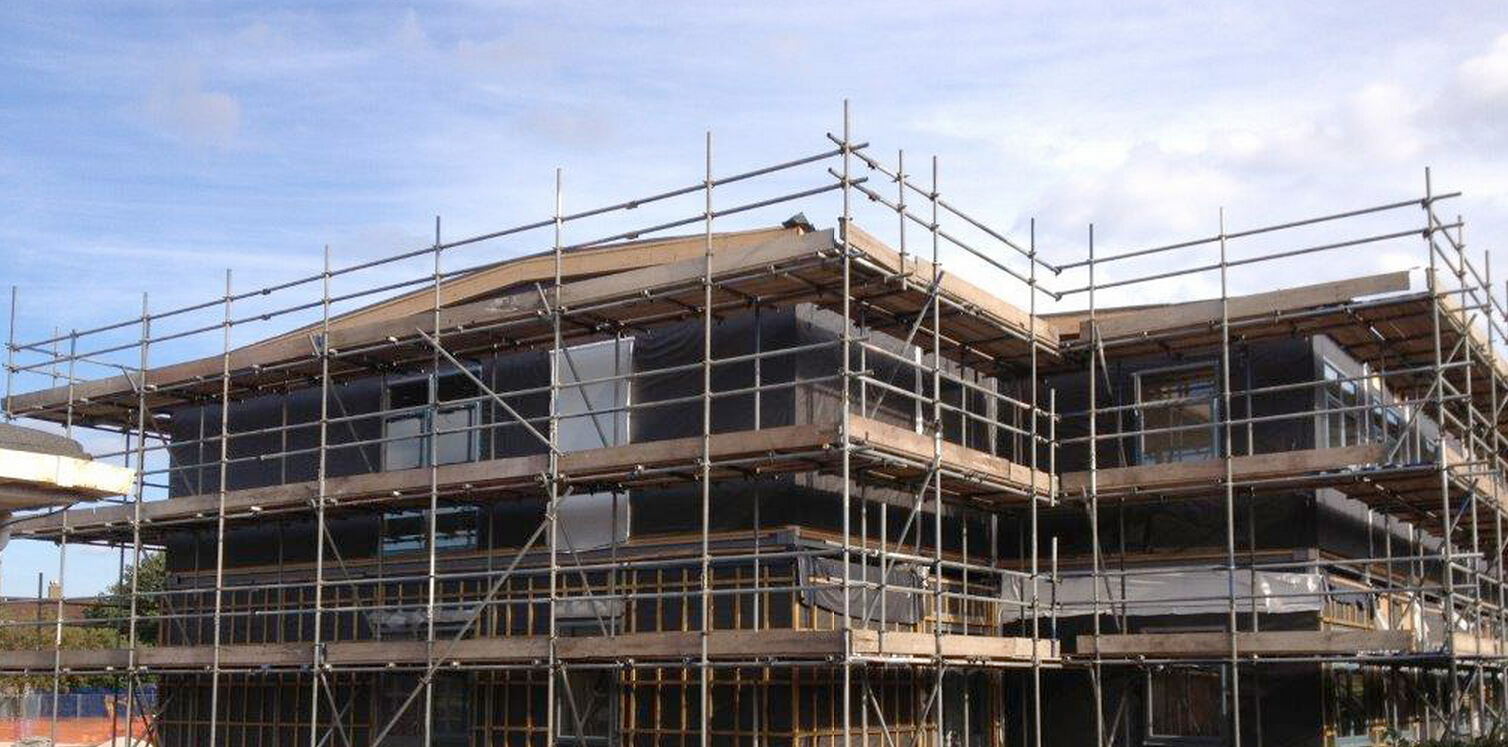

frame scaffolding

  1. If the height of scaffolding exceeds 20m, the horizontal reinforcing tubes shall be set around the outside of the scaffolding every 4 steps and the best position shall be chosen where there are tie members.
  2. Set longitudinal horizontal reinforcing tubes to form a horizontal occlusive ring.
  3. The bottom of the frame scaffolding shall be added with occlusive braces and on the both internal and external side of the scaffolding frame shall be added with bottom reinforcing tubes.
  4. The horizontal reinforcing tubes shall be tied and fastened with the standing tubes of the frame scaffolding by couplers.
  5. For the connection around the scaffolding corners, the horizontal tubes shall be added according to the real span length inside and outside of the scaffolding in the construction buildings to the form the two frame scaffoldings into one integrated structure.

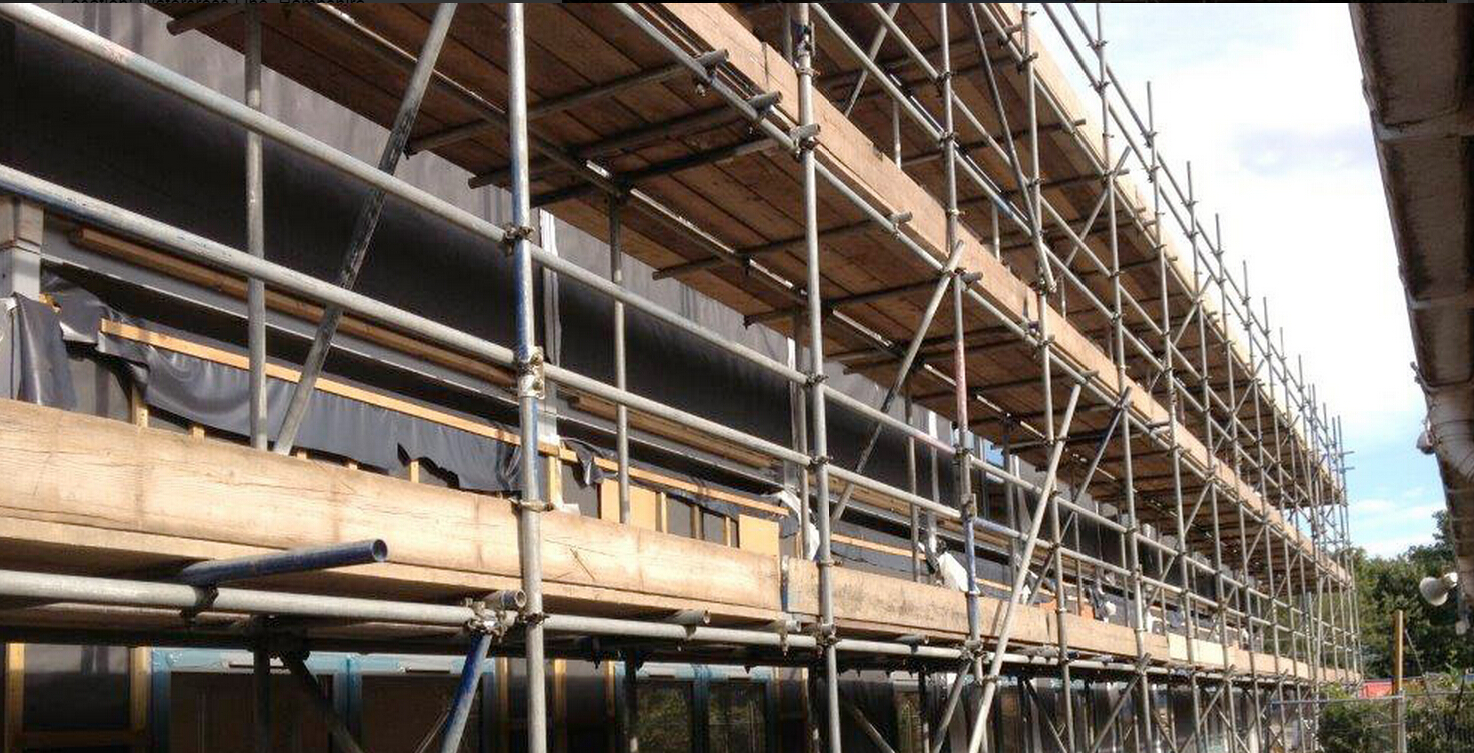

frame scaffolding
