How to Install the Frame Scaffolding and What About Its Applications

Time:2017/06/19

Frame scaffolding advantage of easy disassembly, the installation process is to pay attention to every detail in the construction of the installation of professionals will follow a certain request for construction, a frame scaffolding installation diagram This is not, according to the instructions prompted to install up, familiar Of the construction staff are installed by their own. Install the frame scaffolding is the most important point of security, and sometimes do not pay attention to where the installation will not be in place, the security in a read between the master of the installation method, the operation is also handy, the following is introduced frame scaffolding Installation process:

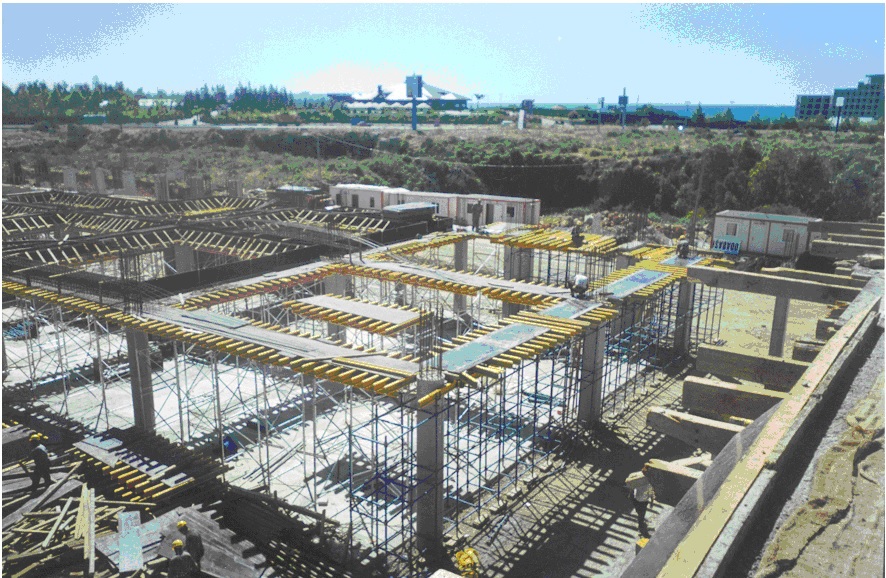

frame scaffolding







1) Frame scaffolding erection order: the basis of preparation → place the plate → place the base → vertical two single-chip mast → install the cross bar → install the scaffolding → as a basis for repeated installation of mast, cross bar, scaffolding process The



2) the foundation must be compacted, and should lay 100mm thick road slag layer, and should do a good job drainage slope, to prevent water.



3) frame steel scaffolding from one end to the other end of the erection, step scaffolding should be in the next step after the scaffolding erection. The erection direction is opposite to the next step.



4) frame scaffolding erection, should be inserted in the end of the base of two mast, and then installed on the cross bar fixed, lock the lock, and then erected after the mast, each take a pin, then install the cross bar And lock pieces.



5) frame steel scaffolding should be set on the outside of scissors, vertical and vertical should be set continuously.









frame scaffolding







6) Scaffolding must be provided with a reliable connection to the building, the distance between the connecting pieces shall not be greater than 3 steps, the vertical direction shall not be greater than 3 steps (scaffold height <20m), 2 steps (scaffold height> 20m).
