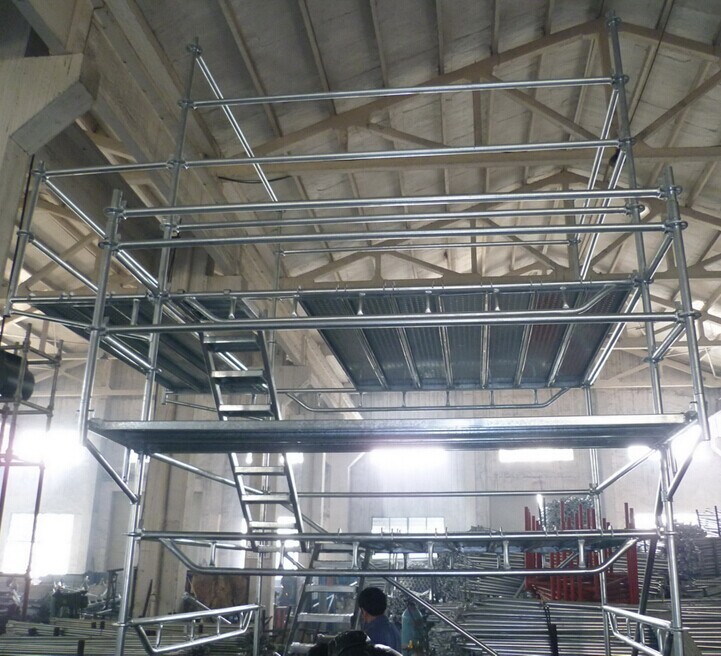

The ringlock scaffolding consists of main tubes, flat tubes, ledgers, diagonal tubes, standard base plate, auxiliary tubes, downside adjusting base plate, U jack head, handrails, ladders, connecting rods and so on.

Main tubes and flat main tubes are major load bearing elements in the whole ring lock system scaffolding and the main tubes include the connecting rods while the flat main tubes don’t contain them and use square steel tubes instead. And ring lock on main tubes and flat main tubes has a intermediate space of 500mm and lengths of main tubes include 1.0 1.5 2.0 and 3.0.

Standard base plates and auxiliary braces and tubes are installed in the way of sleeve tubes inserting into flat main tubes to quickly assemble the scaffolding system and adjust it to any needed height. The axial length of auxiliary tubes are 250mm and 500, which are

tied to the upper side of connection tubes to supplement backwards of main tubes’ flexibility ratio when using it to change the scaffolding height.
