WHOLE SCAFFOLDING & FORMWORK SYSTEM (DESIGN) SERVICE SUPPLIER!

> Rebar Connection System > Rebar Coupler > Weldable Rebar Coupler
Picture of Weldable Rebar Coupler
  • Picture of Weldable Rebar Coupler
  • Picture of Weldable Rebar Coupler

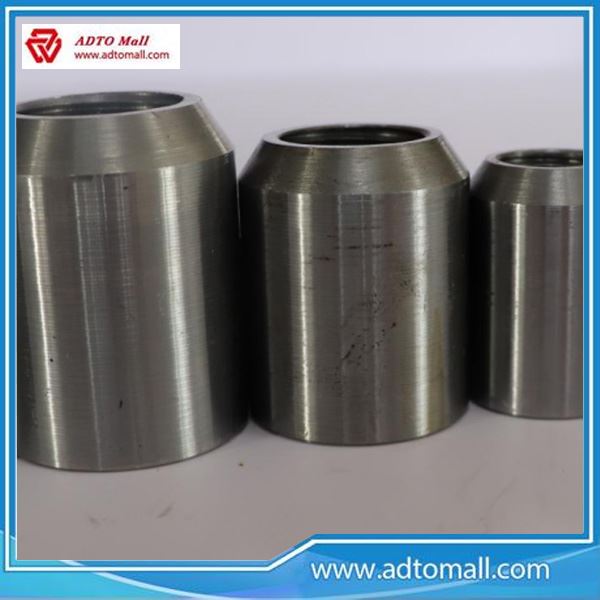

Weldable Rebar Coupler

FOB Price : US $0.12 ~3.50 /PCS
MOQ : 100PCS
Supply Ability : 50,000,000PCS per month
Loading Port : Tianjin
Payment terms : L/C,,D/A,D/P,T/T,Western Union

Live Chat

Product quality protectionOn-time shipment protectionPayment protection

Total Cost:The total price will depend on the final product features you select

Product Categories

Scaffolding
Ringlock Scaffolding
Tube and Coupler System
Frame Scaffolding
Kwikstage Scaffolding
Cuplock Scaffolding
American Style Scaffolding
American Scaffolding
Cuplock System Frame System Scaffold Deck Tube & Clamp Multi-function Scaffold
Scaffolding Planks
Scaffolding Screw Jack
Shoring Prop
Ladders and Staircases
Ladder Beam
Scaffolding Accessories
More Scaffolding
Steel Prop Scaffold Clamps Kwikstage System Ringlock Scaffold System Base Jack Frame Scaffold System Screw Jack
Formwork
Aluminium Formwork
B-Form Column & Wall Formwork System
Film Faced Plywood
Plastic Formwork
Frame Formwork
Steel Formwork
Formwork Accessories
Aluminum Formwork Accessories
PVC Foam Board
Rebar Connection System
Rebar Coupler
Thread Rolling
Threading Machine
Rebar Accessories
Aluminum Wall Panel
Aluminum Composite Panel
Aluminum Veneer
Safety Netting
Debris Netting
Shade Netting
PVC Fireproof Mesh Sheet
Soundproof Cloth
Steel Pipe
Galvanized Steel Pipe
Pre Galvanized Steel Pipe
Square Steel Tubing
Rectangular Steel Tubing
Seamless Steel Pipe
ERW Steel Pipe
LSAW Steel Pipe
SSAW Steel Pipe
Pipe Fittings & Flanges
Stainless Steel Pipe
Stainless Steel Welded Pipe Stainless Steel Seamless Pipe
More Steel Tube
Pre Galvanized Steel Tube Square Steel Pipe Rectangular Steel Pipe ERW Steel Tube LSAW Steel Tube SSAW Steel Tube
Steel Coil
Galvanized Steel Coil
Galvalume Steel Coil
PPGI Steel Coil
PPGL Steel Coil
Roll Forming Machine
Prepainted Aluminum Coils
Aluminum Products Series
Aluminum Beam
Aluminium Ladder
Straight Ladder Extension Ladder Multi-Purpose Ladder Telescopic Ladder Household Step Ladder Ladder Accessories Work Platform Aluminum Stairs Step Stool Ladder Fiberglass Ladder
Aluminium Sheet
Aluminum Coil
Aluminium Profile
Steel Structure
Prefab Villa
Prefab House
Slop Prefab House Flat Prefab House
Prefab Warehouse & Workshop
Container House
Aircraft Hangar
Fire Escape Stairs
Highway Guardrail
Steel Floor Decking
Steel Grating
Industrial Logistics Package
Packing Materials
Packing Machine
Packing Accessories
Phone Booth
Office Phone Booth



Description:

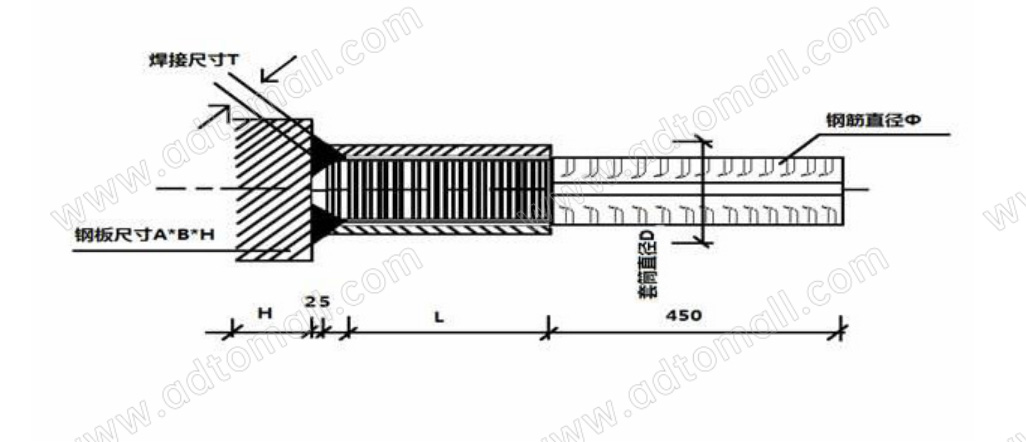

Weldable rebar couplers provide a convenient means of connecting reinforcing bars to structural steel plates or sections. Shorter than the standard coupler, it has a parallel thread at one end. The other end is welded directly to the steel. The load conditions at the connection must be determined by the designer along with the type and size of weld required. It adopts high performance low carbon alloy steel (20Cr) as material to ensure the welding quality. Another important consideration is the type of electrode to be used, which must be matched to the properties of the plate and tube, and to the site conditions under which the welding will be undertaken. Welders should be qualified for the type of weld required.



Product Advantage:



1.Designed for connecting reinforcing bar perpendicular to structural steel sections or plates



2. Internally taper threaded on one end, with the other end prepared for welding



3.Machined from weldable grades of steel





Technical Advantages



1) High splice strength, which could exert ultimate tensile and compression strength of rebar, it could satisfy the requirements stipulated in the Chinese standard JGJ107, American standard UBC1997, British standard BS8110, French Standard NF35-20-1, German standard DIN1045, ISO15835 and other requirements in the relevant standards;

2) Easy to operate and maintain, no need for technicians, fast splicing on construction site;

3) Several types of splices, which could be suitable for rebar splicing when the rebar cage or the bending rebar is used;

4) High production efficiency, it only takes less than 1 minute to upset and make one thread on the site;

5) High adaptability, the splicing could be conducted when the power is off, or under water, or at super high position, or windy, rainy and snowy weather.

6) Environment-friendly, material-effective.

7) Inexpensive to purchase, maintain and repair.

8) The Splicing could be produced in advance without influencing the construction period.

9) Full-Tension splice, bar break under tensile tests.

10) Manufactured under strict quality assurance plan ISO 9001


Application:



Factory & Inventory

Production Processes

Quality Control

Package & Shipping


Application
