WHOLE SCAFFOLDING & FORMWORK SYSTEM (DESIGN) SERVICE SUPPLIER!

> Steel Pipe > Pipe Fittings & Flanges > Slip-on Flange
Picture of Slip-on Flange
  • Picture of Slip-on Flange

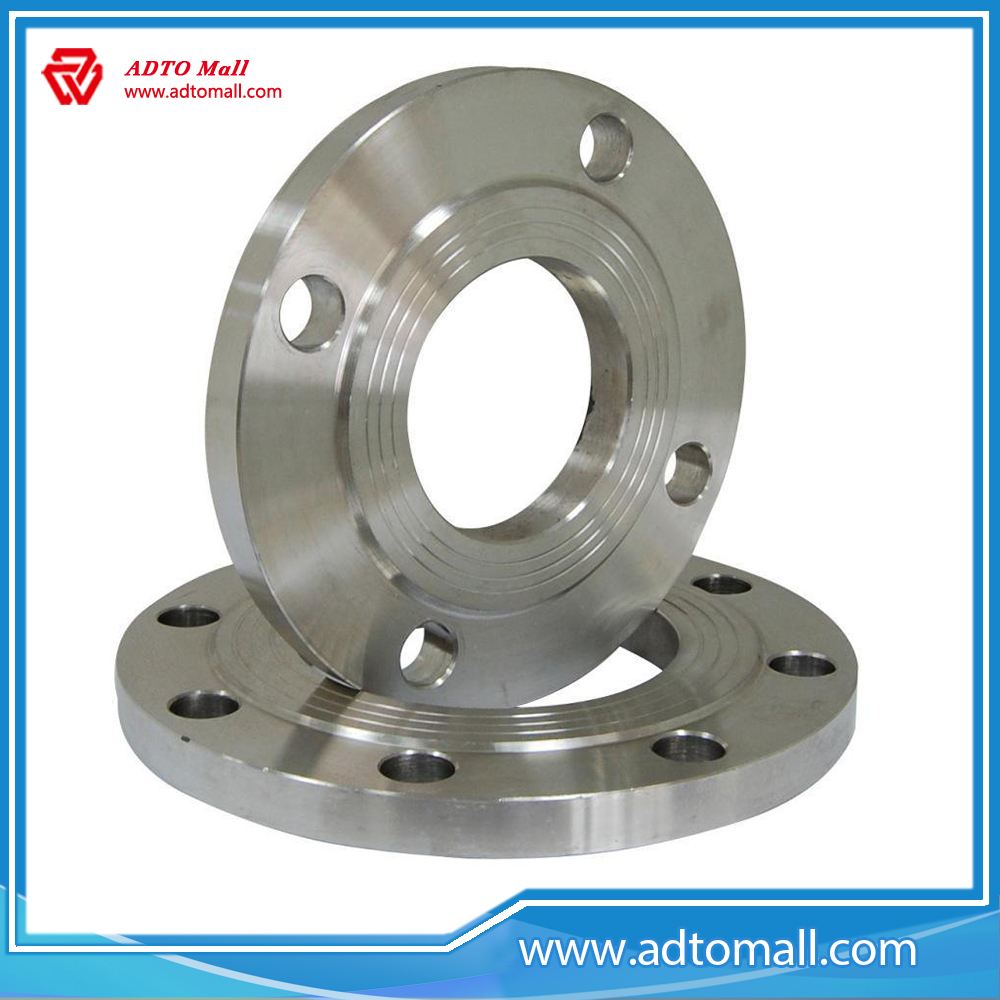

Slip-on Flange

FOB Price : US $1.00 ~500.00 /PC
Item NO. : ADTO02PJPJ0025
Min.Order Quantity : 100 Set/Sets
Supply Ability : 50,000,000 Set/Sets per Month
Loading Port : TianJin
Payment Terms : L/C,D/A,D/P,T/T,Western Union

Live Chat

Product quality protectionOn-time shipment protectionPayment protection

Total Cost:The total price will depend on the final product features you select

Product Categories

Scaffolding
Ringlock Scaffolding
Tube and Coupler System
Frame Scaffolding
Kwikstage Scaffolding
Cuplock Scaffolding
American Style Scaffolding
American Scaffolding
Cuplock System Frame System Scaffold Deck Tube & Clamp Multi-function Scaffold
Scaffolding Planks
Scaffolding Screw Jack
Shoring Prop
Ladders and Staircases
Ladder Beam
Scaffolding Accessories
More Scaffolding
Steel Prop Scaffold Clamps Kwikstage System Ringlock Scaffold System Base Jack Frame Scaffold System Screw Jack
Formwork
Aluminium Formwork
B-Form Column & Wall Formwork System
Film Faced Plywood
Plastic Formwork
Frame Formwork
Steel Formwork
Formwork Accessories
Aluminum Formwork Accessories
PVC Foam Board
Rebar Connection System
Rebar Coupler
Thread Rolling
Threading Machine
Rebar Accessories
Aluminum Wall Panel
Aluminum Composite Panel
Aluminum Veneer
Safety Netting
Debris Netting
Shade Netting
PVC Fireproof Mesh Sheet
Soundproof Cloth
Steel Pipe
Galvanized Steel Pipe
Pre Galvanized Steel Pipe
Square Steel Tubing
Rectangular Steel Tubing
Seamless Steel Pipe
ERW Steel Pipe
LSAW Steel Pipe
SSAW Steel Pipe
Pipe Fittings & Flanges
Stainless Steel Pipe
Stainless Steel Welded Pipe Stainless Steel Seamless Pipe
More Steel Tube
Pre Galvanized Steel Tube Square Steel Pipe Rectangular Steel Pipe ERW Steel Tube LSAW Steel Tube SSAW Steel Tube
Steel Coil
Galvanized Steel Coil
Galvalume Steel Coil
PPGI Steel Coil
PPGL Steel Coil
Roll Forming Machine
Prepainted Aluminum Coils
Aluminum Products Series
Aluminum Beam
Aluminium Ladder
Straight Ladder Extension Ladder Multi-Purpose Ladder Telescopic Ladder Household Step Ladder Ladder Accessories Work Platform Aluminum Stairs Step Stool Ladder Fiberglass Ladder
Aluminium Sheet
Aluminum Coil
Aluminium Profile
Steel Structure
Prefab Villa
Prefab House
Slop Prefab House Flat Prefab House
Prefab Warehouse & Workshop
Container House
Aircraft Hangar
Fire Escape Stairs
Highway Guardrail
Steel Floor Decking
Steel Grating
Industrial Logistics Package
Packing Materials
Packing Machine
Packing Accessories
Phone Booth
Office Phone Booth


Product Description

  1. Standard: ASME B16.5, JIS B2220, DIN2576, DIN2632, DIN2527, GOST 12820, EN 1092-1, BS 4504;

  2. Material: ASTM/ASME--A105, A181, A350, A182, A522, A694; EN--P245GH, P280GH, P305GH, 16Mn3, 13MnNi6-3, P285NH;

  3. Connecting Types: PL, SO, WN, IF, SW, TH, PJ/SE, PJ/RJ, BL, BL(S);

  4. Surface Types: RF, FM, MFM, TG, FF, RJ;

  5. Nominal Pressure: PN 2.5bar-PN 400bar, Class 150-Class 2500;

  6. Drawings and Pictures:


Product Images



pipe fittings and flanges product Image_PL flange



flange type images

flange type 2

kinds flange

Specifications



Different countries have different standad, here is the details about American standard, German standard, Japanese standard and national standard.

 Pipe Fittings_Flanges_Specifications_02

American Standard Series
StandardSize rangePressure grade
ANSI B 16.5(88)1/2"-24"Class 15030060090015002500
ANSI B 16.47(9026"-60"Class 150300600900
ASME B 16.5(96)1/2"-24"Class 15030060090015002500
ISO7005-1(92)1/2"-24"PN2.0 5.0 11.0 15.0 26.0 42.0
BS4504-3.1(89)1/2"-24"Class 15030060090015002500
JPI 7S-15-931/2"-24"Class 15030060090015002500
NF E29-2031/2"-24"PN2.0 5.0 11.0 15.0 26.0 42.0
API605-8126"-60"Class 150300600
ASME B 16.36(96)1"-24"Class 30040060090015002500
German Standard Series
StandardSize rangePressure grade
DIN 2630 WNDN1200-DN24001 Bar
DIN 2631 WNDN10-DN36006 Bar
DIN 2632 WNDN200-DN300010 Bar
DIN 2633 WNDN10-DN200016 Bar
DIN 2634 WNDN200-DN100025 Bar
DIN 2635 WNDN10-DN50040 Bar
DIN 2636 WNDN10-DN40064 Bar
DIN 2637 WNDN10-DN350100 Bar
DIN 2638 WNDN10-DN300160 Bar
DIN 2573 PLDN10-DN5006 Bar
DIN 2576 PLDN10-DN50010 Bar
DIN 2527 PLDN10-DN5006 10 16 25 40 Bar
DIN 2501 WNDN15-DN50010 16 25 40 63 100 160 250 320 400 Bar
DIN 2566 THDN15-DN50010 16 Bar
DIN 2655 PLDN15-DN5000.25 0.6 1.0 1.6 2.5 4.0 Bar
DIN 2656 PLDN15-DN5000.25 0.6 1.0 1.6 2.5 4.0 Bar
Japanese Standard Series
StandardSize rangePressure grade
JIS B 2220 PLDN10-DN4005K
JIS B 2220 SODN450-DN10005K
JIS B 2220 PLDN10-DN22510K
JIS 2220 SODN250-DN100010K
JIS 2220 SODN10-DN120016K 20K 30K
JIS 2220 WNDN15-DN40030K
National Standard Series
StandardSize rangePressure grade
GB/T 9112-9113.4-2000DN10-DN2000PN 0.25 0.6 1.0 2.5 4.0 6.3 10.0 16.0 Mpa
JB/T 74-86.2-94DN10-DN1600PN 0.25 0.6 1.0 2.5 4.0 6.3 10.0 16.0 20.0 Mpa
HG 20592-20626-97DN10-DN2000PN 0.25 0.6 1.0 2.0 2.5 4.0 5.0 6.3 10.0 11.0
 15.0  16.0 25.0 26.0 42.0 Mpa
SH 3406-96DN10-DN1500PN 1.0 2.0 5.0 6.8 10.0 15.0 25.0 42.0 Mpa
GB/T 17241.1-17241.7DN10-DN4000PN 0.25 0.6 1.0 1.6 2.0 2.5 4.0 5.0 Mpa
GB/T 15530.1-15530.8DN10-DN1800PN 0.6 1.0 1.6 2.0 2.5 4.0 5.0 Mpa
Power Ministry Series
StandardSize rangePressure grade
D-GD86-0510-0537DN15-DN2000 PN 0.25 0.6 1.0 1.6 2.5 4.0 6.4 10.0 Mpa
DG0511-0541DN15-DN1000PN 0.25 0.6 1.0 1.6 2.5 4.0 6.4 10.0 20.0 32.0 Mpa
Pressure Vessel Series
StandardSize rangePressure grade
JB/T 4701-2000(甲型)DN300-DN2000PN 0.25 0.6 1.0 1.6 10.0 Mpa
JB/T 4702-2000(乙型)DN300-DN3000PN 0.25 0.6 1.0 1.6 2.5 4.0 Mpa
JB/T 4703-2000(长颈)DN300-DN2000PN 0.6 1.0 1.6 2.5 4.0 6.4 Mpa
Shipping Series
StandardSize rangePressure grade
GB573-581-76DN20-DN500PN 0.6 1.0 1.6 2.5 4.0 6.4 Mpa
GB2506-2507-89DN10-DN2000PN 0.25 0.6 1.0 1.6 2.5 Mpa
GB4450-84DN20-DN500PN 0.6 1.0 1.6 Mpa
GB10746-10749-89DN10-DN600PN 0.6 1.0 1.6 2.5 4.0 6.4 Mpa



Maintenance



pipe fittings and flanges maintenance



Applications



pipe fittings and flanges applications



Packing and Shipping



pipe fittings and flanges packaging and shipping
