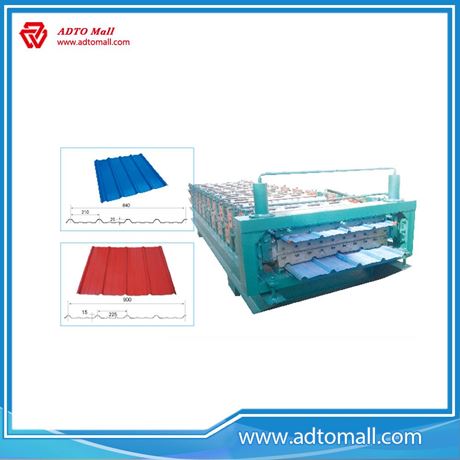

This kind of double layer roofing tile roll forming machine make two type of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer with limit area or site operation.
-
This machine is composed of feed leading table, main forming device, cutting device, hydraulic station, computer control system and so on.
-
The switch of up layer and down layer is easy completed change the button on the control box and the clutch to guide the power.
-
The optional devices: normal uncoiler and hydraulic uncoiler.
-
The model of the each sheet can be designed according to customers’ requirements
|
Model No: |
ADTO-DLRFM |
Application |
|
Production Capacity |
8-12m/min |
Wall panel
|
|
Main motor power: |
4 kw |
|
|
Pump power |
4 wk |
|
|
Voltage |
380 V 60Hz 3phases |
|
|
Main frame: |
300H steel |
|
|
Coil Width(mm) |
1000 |
|
|
Dimension(L*W*H): |
About 7000*1500*1500mm |
|
|
Weight: |
About 5T |
|
|
Thickness of the plate |
0.3-0.8mm |
|
|
Roller material: |
45#steel Chrome Plated |
|
|
Cutting blade material |
Cr 12 high grade steel |
|
|
Diameter of Shaft |
75mm |
|
|
Mode of transmission |
Sprocket/Chain |
|
|
Roll station |
10/13 row Adjustable |
|
|
Medium plate thickness |
16 mm |
|
|
Hydraulic station pressure |
10-12MPa |
|
|
Control system |
PLC computer control system |
|
|
Certification: |
CE/BV/ISO |
The equipment model can be designed and manufactured according to customers' requirement of specification and drawing.
1. Experience: Founded in 1998, more than 17 years in construction materials manufacturing
2. Product Idea: Quality decided to safety, safety is the hard truth.
3. Certifications: ISO, CE, SGS, BV
4. Production base: Four factories, more than 400,000 square meters
5. OEM or Customized Service is available.
Person: Ms Zheng
Email: Info@adtomall.com
Skype: ADTOMall
Address: HuNan,China
More detail, welcome to send inquiry.
