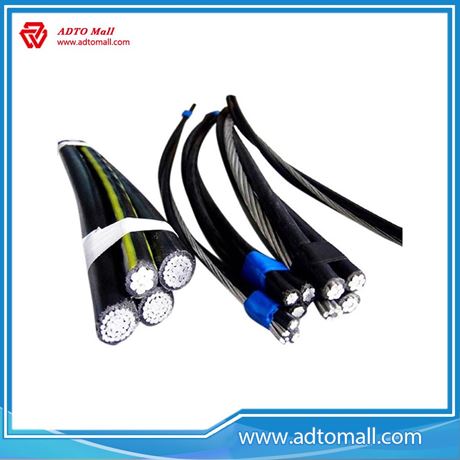

| Place of Origin | Hunan, China (Mainland) | Brand Name | ADTO | Model Number | ACSR Cable |
| Insulation Material | XLPE | Type | ACSR Cable | Application | Industrial |
| Conductor Material | AL/CU | Jacket | PVC | Certificate | CE SGS |
| Standard |
GB/T12527-2008 GB/T14049-2008 |
Max Temperature | 90℃ | Product name | XLPE Insulated |
Performance:
1. The rated voltage are U/U 0.6/1KV, 10KV;
2.The working temperature of the PVC/PE insulated cable during long-term service shall be lower than 70℃, and XLPE insulated cable shall be lower than 90℃;
3.The enviromental temperature when laying shall be higher than -20℃;
4. The allowable bending radius:
Cable outer diameter(D) smaller than 25mm,the allowable bending radius shall be larger than 4D;
Cable outer diameter(D) equal to or larger than 25mm,the allowable bending radius shall be larger than 6D;
5. Under AC power, the cable's rated voltage shall be no less than that of the AC power; Under DC power, the rated voltage shall smaller than 1.5 times of the cable's rated voltage.
We offer different finishes of PPGI to satisfy all your needs. Let us know if you require a product or service that you do not see listed here. We gladly to offer custom-manufactured service for your convenience.

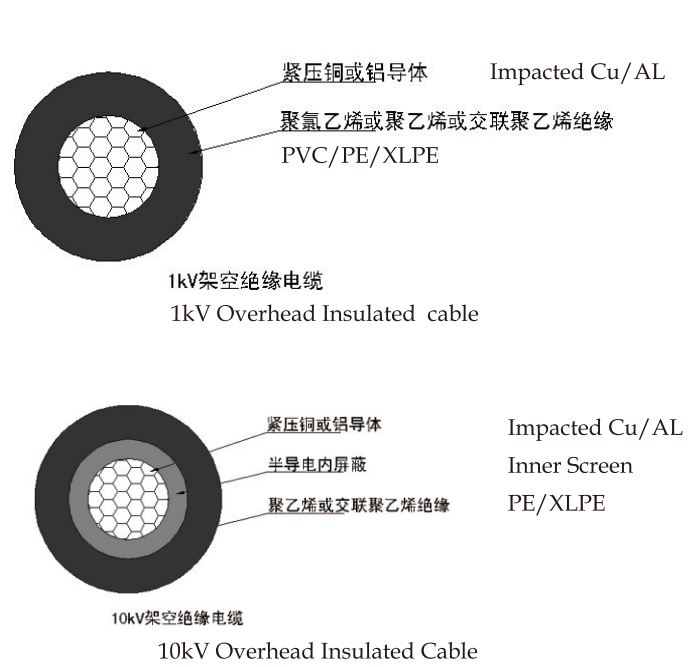

The series of cables were produced according to GB/T 12527-2008 and GB 14049-2008, which are suitable for overhead transmission and substation power lines with AC rated voltage of 10KV and below.
In carton box, wooden reel, 305m/box, 200m/coil, 300m/500m/drum;
Inter packing: wooden reel, plastic reel or paper reel;
Outer packing: carton box, pull out box.
Shipping: by shipment, by air, or by express, according to client’s request.
