Advantages of ADTO aluminum formwork:
1. Low average cost (can be reused for more than 300 times)
2. Safe (can load 60KN/m2)
3. Light weight (22-25kg/m2)
4. Good hardness
5. High efficiency on installing & dismantling
6. Value maintain (recycling price can be 90% of the alum ingot)
7. Environmental friendly
8. Four days one floor only
Specification:
| Place of Origin | Hubei, China (Mainland) | Brand Name | ADTO | Model Number | ADTO-F11 |
| Aluminum Series Model | 6061-T6(GB5237-2008 stand) | Surface Treatment | Hot light body | Application | Tall building/sairport/towers |
| Weight per square aluminized | 20-28kg(Standards formwork) | Features | One-time Pouring, Over 200 times to resuses | Certificate | ISO9001:2008;CE;SGS |
| Standard Formwork Length | 2.7m,2.34m,1.2m | Aluminum thickness | 4mm | Components | Beam/Pillar/Wall/Prop/Floor/Reinforcement system |

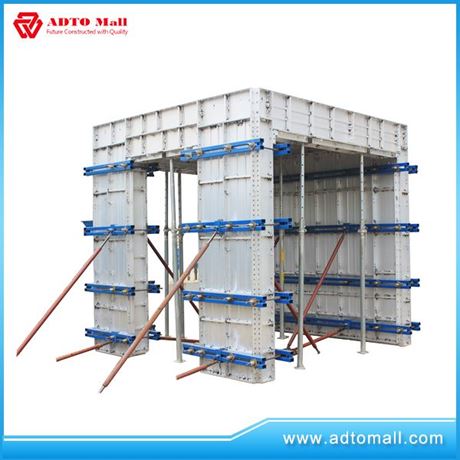

Aluminum Wall Forming System:
ADTO Aluminum Formwork is very useful for the time reduction and the cost shortening. Also, since it is very convenient to use,
even a beginner can be a professional through simple training. In addition, since it’s made of Aluminum, it hardly pollutes the workzone. Furthermore, it allows workers to work in the site of safety.
ADTO aluminum wall formwork used to set a wall with concrete, now we supply the following basic size:
600(w) X 2300/2450(H)
500(W) X 2300/2450(H)
450(W) X 2300/2450(H)
400(W) X 2300/2450(H)
300(W) X 2300/2450(H)

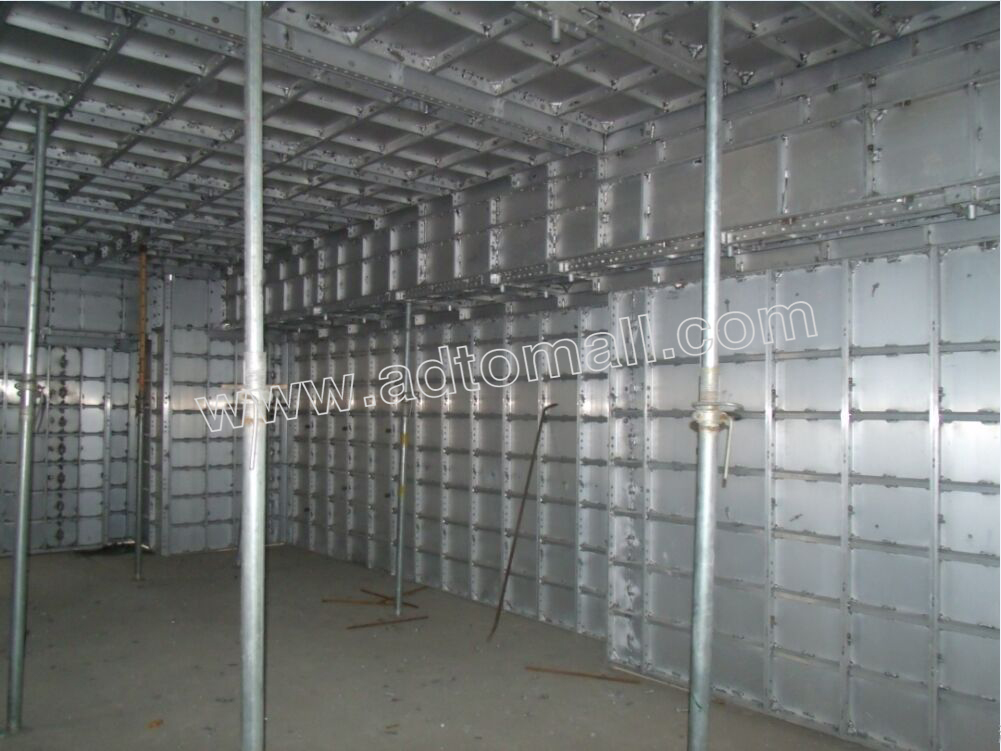

The System is fast, simple, adaptable and very cost effective. It is unique because it forms all of the concrete in a building including walls,
floor slabs, columns, beams, stairs, window hoods, balconies and various decorative features in exact accordance with the architects'
design. The dimensional accuracy of the concreted work also results in consistent fittings of doors and windows. The smooth-off form
finish of the concrete eliminates the need for costly plastering
ADTO Aluminium Formwork can be used widely in the construction of residential units and mass housing projects. It is fast, simple, adaptable and cost – effective. It produces total quality work which requires minimum maintenance and when durability is the prime consideration. This system is most suitable for Indian condition as a tailor–made aluminum formwork for cast–in–situ fully concrete structure.
ADTO Industrial Group, Co., Limited, founded in 1998, ADTO is a leading building material supplier and manufacture in China, centering on R&D, producing and selling of building material of scaffolding, aluminum formwork, fastener and coupler, integrates business of steel, logistic and wire & cables service. The group has more than 10 subdivisions and four manufacturing bases, possessing the right to import and export with business coverages spanning over more than 50 places and areas. Over 5000 international big buyers keep ADTO as their long term business partner.
1. Experience: Founded in 1998, more than 17 years in construction materials manufacturing
2. Product Idea: Quality decided to safety, safety is the hard truth.
3. Certifications: ISO, CE, SGS, BV
4. Production base: Four factories, more than 400,000 square meters
5. OEM or Customized Service is available.
Person: Ms Zheng
Email: Info@adtomall.com
Skype: ADTOMall
Address: HuNan,China
More detail, welcome to send inquiry.
